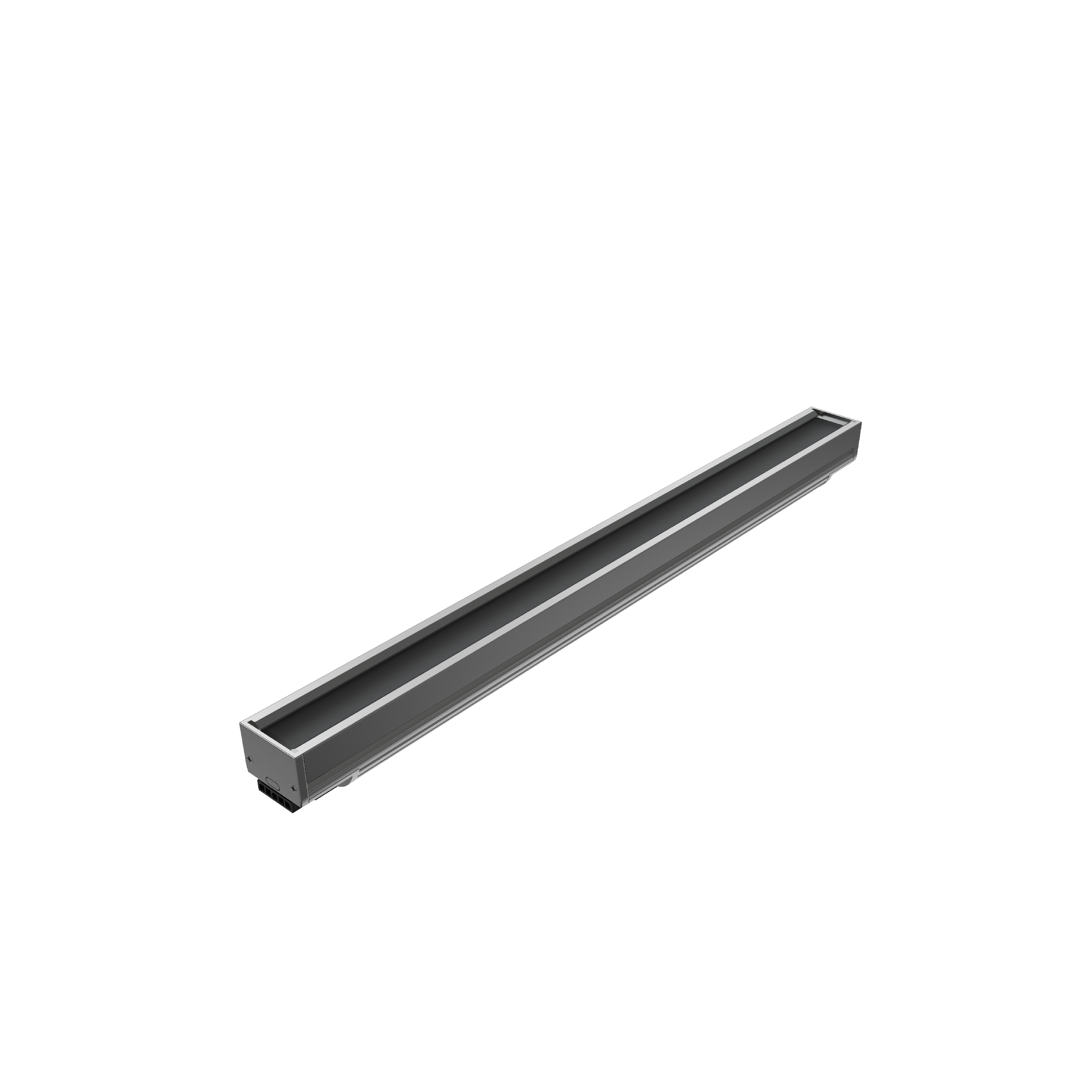

Nano HD

by Boca Lighting and Controls

Boca Lighting and Controls’s Nano HD is the latest addition to the popular NanoLume family.

Specification Sheet Product Page

Specsheets

nano-hd_boca_specsheet.pdf

Photometry

AutoCAD File

Beam Angle

15x40 , 120

CCT

2000K , 2400K , 2700K , 3000K , 3500K , 4000K

CRI

95 CRI

Color / Finish

Clear Anodized Aluminum

Dimensions

L: 42 In., L: 48 In., L: 72 In., L: 54 In., H: 1.09 In. L: 12 In. W: 1.01 In., L: 60 In., L: 18 In., L: 30 In., L: 24 In., L: 66 In., L: 36 In.

Dimming Protocol

0-10 V , DALI , DMX , Forward Phase , Reverse Phase

Lamp Source

LED

Listings

cULus

Lumens

718 Lm, 850 Lm, 936 Lm, 980 Lm, 1030 Lm, 1060 Lm

Materials

Aluminum

Mounting

Fixed , Hinge

Ratings & Compliance

Build America Buy America (BABA) , Buy American Act (BAA) , IP50 , IP69K , JA8 , Made in America , RoHS , Title 24

Static LED Color

White

Voltage

230-277 V , 90-120 V

Warranty

5 yr

Watts

6 w, 10 w
