BSS305

by Bartco

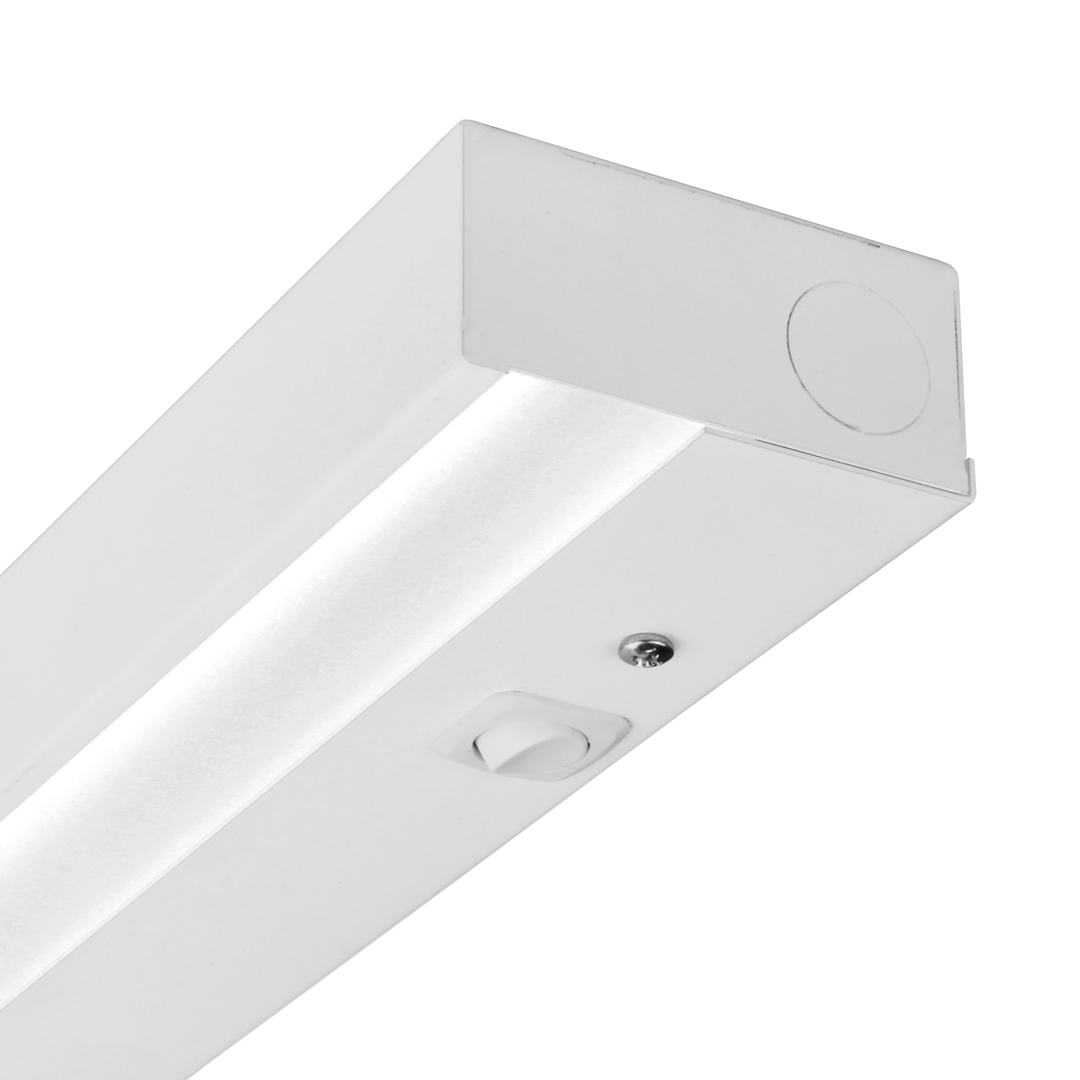

Quality LED illumination and several control options make the BSS305 luminaire an ideal task light. The robust, 23”–56” nominal length fixtures feature an acrylic lens, multiple light output choices, dimming driver capability and an occupancy sensor option.

Specsheets

CCT

2700K , 3000K , 3500K , 4000K

CRI

90

Color / Finish

Black , Bronze , Clear Anodized Aluminum , Custom , Matte Black , Matte White , Silver , White

Controls Options

Integral Sensor , Occupancy Sensor

Dimensions

L: 22.19 In. W: 3.03 In. H: 1.44 In., L: 33.19 In., L: 44.19 In., L: 55.19 In.

Dimming Protocol

0-10 V , DALI , ELV (Trailing Edge) , Lutron , Triac (Leading Edge) , eldoLED

Dimming Range

1% , < 1% , Non-Dimmable

Efficacy

96, 97

Lamp Life

50000

Lamp Source

LED

Listings

UL , cUL

Lumens

2000, 2722

Materials

Acrylic , Steel

Ratings & Compliance

Damp , Dry , Made in America

Special Programs

Quick Ship

Static LED Color

Red

Voltage

120 V , 120-277 V , 277 V

Warranty

5 yr
