Lino

by A Light

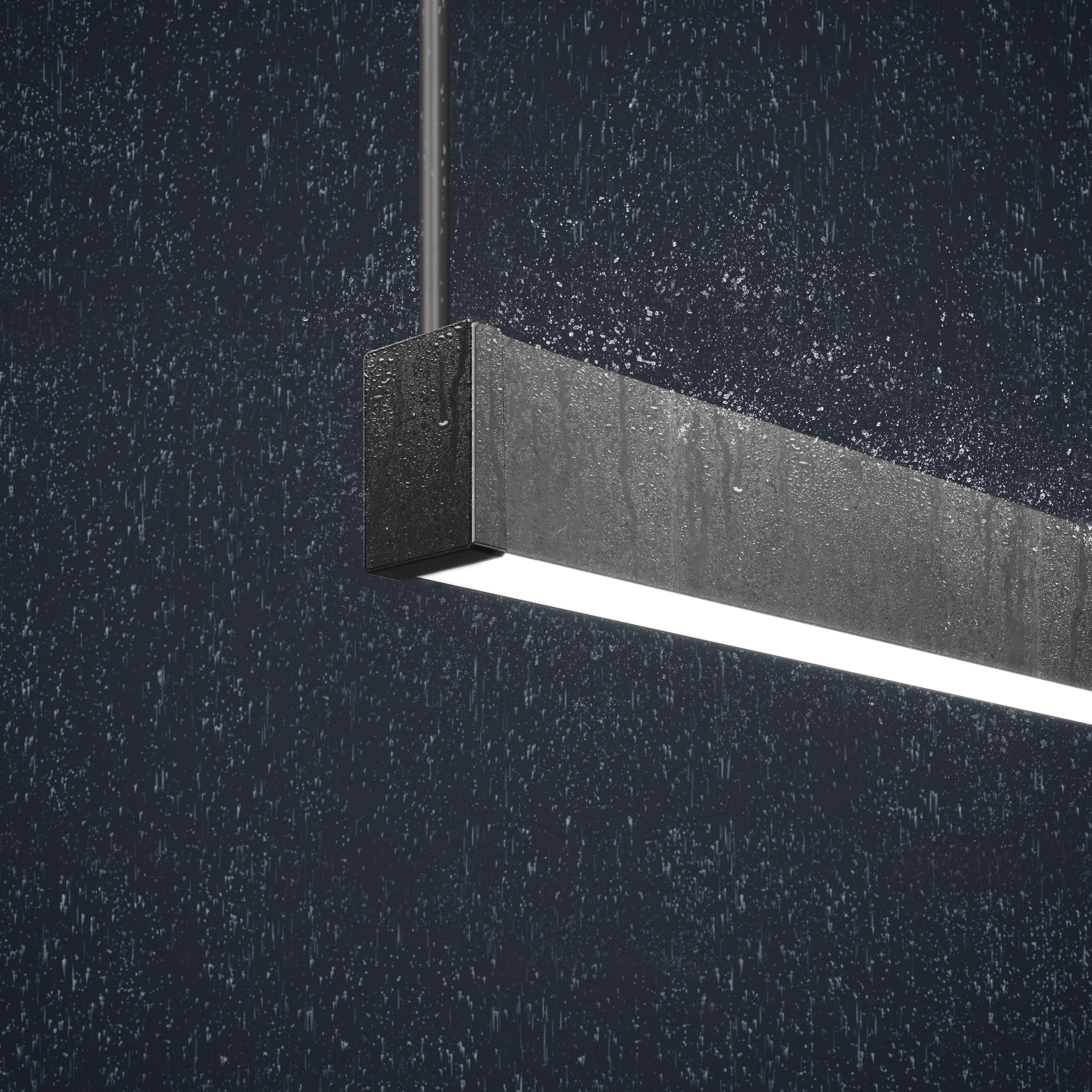

Available in 2.16” and 3” apertures, Lino’s small profile housing and no visible hardware ensure that the fixture subtly integrates into a variety of interior and exterior environments. With an IP66 rating, Lino luminaires are particularly well-suited for outdoor applications with harsher weather conditions such as rain, snow, sand, or excessive dirt or dust. Designers can mix and match from numerous suspended or surface mountings to maintain a consistent design aesthetic. Suspended mountings include catenary or pendant stem. Ceiling, direct wall, or mullion block can be selected for surface mountings. Direct illumination is available with batwing, flat blade louver, HE Tech™, wall grazer or wall wash distribution types, each meeting specific lighting needs. Designers may choose indirect illumination for the mullion block mounting option.

Specification Sheet Product Page

Specsheets

ALIGHT-LIN-SPECSHEET.pdf

CCT

2700K , 3000K , 3500K , 4000K , 5000K

CRI

80, 90

Dimming Protocol

eldoLED

Dimming Range

1% , 5% , 50%

Distribution

Batwing , Direct , Indirect , Lambertian

Efficacy

4, 72, 76, 78, 80, 82, 85, 93, 101, 104, 106, 110, 111, 114

Integrated Brands

Acuity nLight

Lamp Source

LED , UV

Listings

CSA , UL

Materials

Aluminum

Mounting

Arc , Arm , Ceiling , Pendant , Surface , Suspended , Swivel , Wall

Ratings & Compliance

ADA , Buy America , Damp , Dry , Exterior , IK08 , IK10 , IP66 , Interior , Wet

Voltage

120-277 V , 347 V

Warranty

5 yr

Watts

1, 4, 5, 6, 7, 8, 9
