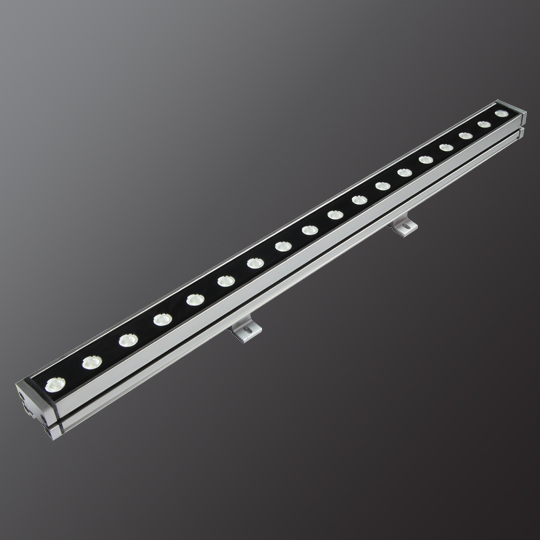

Nano Linear
by Acolyte
The Nano Linear is the perfect fixture where minimal space and high output and beam control are needed. With 3 different options for lensing, 6 different options for color temperature and 3 different lengths, the Nano can be tailored for any application. An outdoor IP66-rated fixture, use the Nano to...Read More ยป
Specsheets
Acolyte_SpecSheet_ArmorSeries_MountingArms_03OCT2025.pdf
Acolyte_SpecSheet_ArmorSeries_NanoLinear_22OCT25.pdf
Acolyte_SpecSheet_ArmorSeries_NanoLinear_03OCT2025.pdf
Acolyte_SpecSheet_ArmorSeries_NanoLinear_09JUL2025.pdf
Acolyte_SpecSheet_ArmorSeries_NanoLinear_02JAN2025.pdf
Acolyte_InfoSheet_ArmorSeries_06JAN2025.pdf
Acolyte_SpecSheet_ArmorSeries_MountingArms_06JAN2025.pdf
Acolyte_SpecSheet_ArmorSeries_NanoLinear_26NOV2024.pdf
Acolyte_SpecSheet_ArmorSeries_MountingArms_26NOV2024.pdf
Acolyte_InfoSheet_ArmorSeries_13NOV2024.pdf
Acolyte_InfoSheet_ArmorSeries_09JUL2024.pdf
Acolyte_SpecSheet_ArmorSeries_NanoLinear_09JUL2024.pdf
Acolyte_SpecSheet_ArmorSeries_NanoLinear_29APR2024.pdf
Acolyte_InfoSheet_ArmorSeries_14OCT2022.pdf
Acolyte_SpecSheet_ArmorSeries_MountingArms_26APR2021.pdf
Acolyte_SpecSheet_ArmorSeries_NanoLinear_15MAR2023-1.pdf
Photometry
Beam Angle
25 , 30 , 55
CCT
2700K , 3000K , 3500K , 4000K , 5000K , 6000K
CRI
80, 90
Color / Finish
Silver
Dimensions
L: 7.2 In. L: 19.7 In. L: 39.4 In.
Dimming Protocol
0-10 V , DALI
Lamp Source
LED
Listings
CE , ETL
Lumens/Linear Ft.
210, 1177
Materials
Aluminum
Mounting
Arm , Hanging , Surface , Wall
Ratings & Compliance
IP67
Static LED Color
White
Voltage
24 V
Watts / Linear Ft.
3, 9, 18

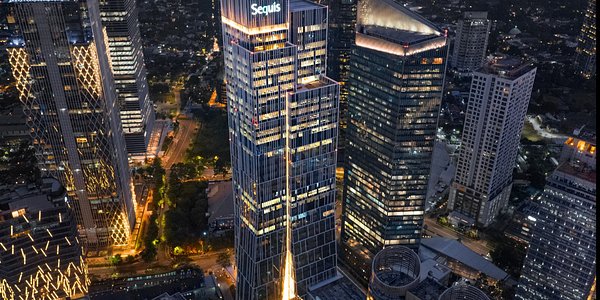

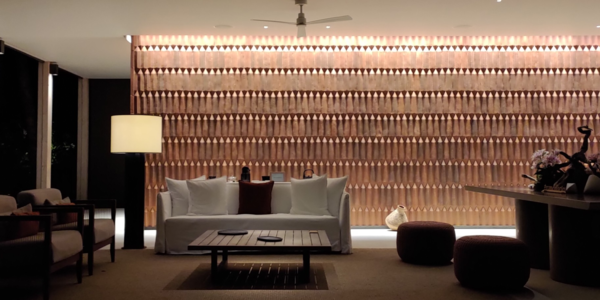

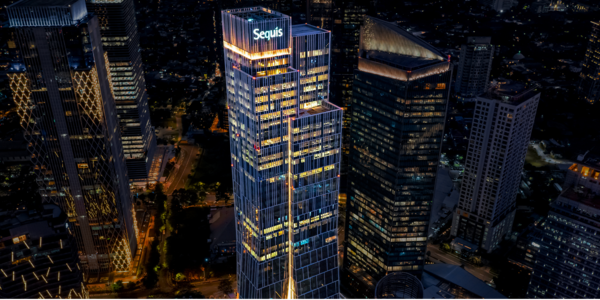

View This Product In Action
